Pressure Enthalpy Without Tears

1. Why would someone plot an HVAC system on a pressure-enthalpy diagram?

Create a visual representation of the system Estimate system capacity and efficiency Evaluate system deficiencies and faults All of the above

Previous Next

2. Which of the following items do you NOT need to plot a pressure-enthalpy diagram?

High side pressure Low side pressure Compressor outlet temperature Evaporator outlet temperature

Previous Next

3. The horizontal lines on a pressure-enthalpy diagram are:

Lines of constant enthalpy Lines of constant entropy Lines of constant temperature Lines of constant volume

Previous Next

4. The vertical lines on a pressure-enthalpy diagram are:

Lines of constant enthalpy Lines of constant entropy Lines of constant temperature Lines of constant volume

Previous Next

5. What does it mean if a point is outside the saturation curve and to the left of it?

The fluid is 100% liquid (subcooled) The fluid is at saturation The fluid is 100% vapor (superheated) The fluid cannot and does not exist

Previous Next

6. What are the lines of constant quality?

Curved lines that drop off from the horizontal lines inside the saturation curve Slanted lines that determine the liquid/vapor content of a saturated fluid in 10% increments Slightly curved lines that rise from the horizontal lines inside the saturation curve Steeply curved lines that rise from the horizontal lines inside the saturation curve

Previous Next

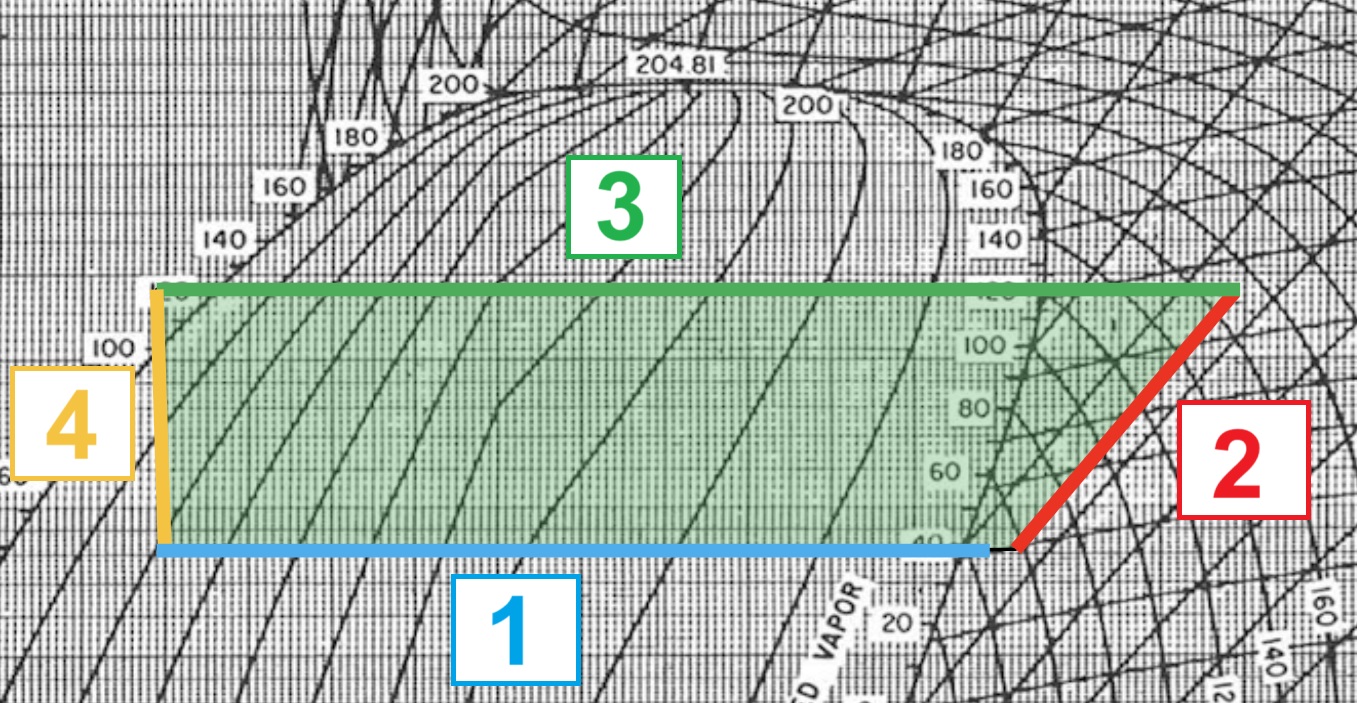

7. Which line on the pressure-enthalpy chart below represents the compressor?

1 2 3 4

Previous Next

8. What is efficiency?

Getting the lowest up-front price possible How quickly we do work, regardless of the callback rate How well systems meet criteria for governmental incentives Ratio of output to input

Previous Next

9. Which equation including net refrigeration effect (NRE) and heat of compression (HOC) represents coefficient of performance (COP)?

NRE + HOC = COP NRE - HOC = COP NRE / HOC = COP NRE x HOC = COP

Previous Next

10. The trapezoid of an overcharged system will be __________________________ of the baseline "ideal system" trapezoid.

A little bit up and to the left A little bit up and to the right A little bit down and to the left A little bit down and to the right

Pressure Enthalpy Without Tears
