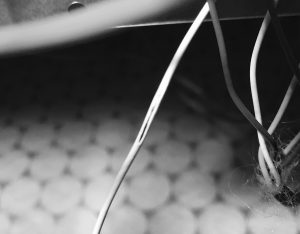

Erich Vinson is a tech from Colorado and one of the most entertaining people I interact with online. He wrote this quick tech tip on stripping back the outer jacket properly on control wires, and it happens to also be something I preach. Thanks, Erich. In the first picture (above), you can see what happens […]
