Refrigerant Recovery Practices

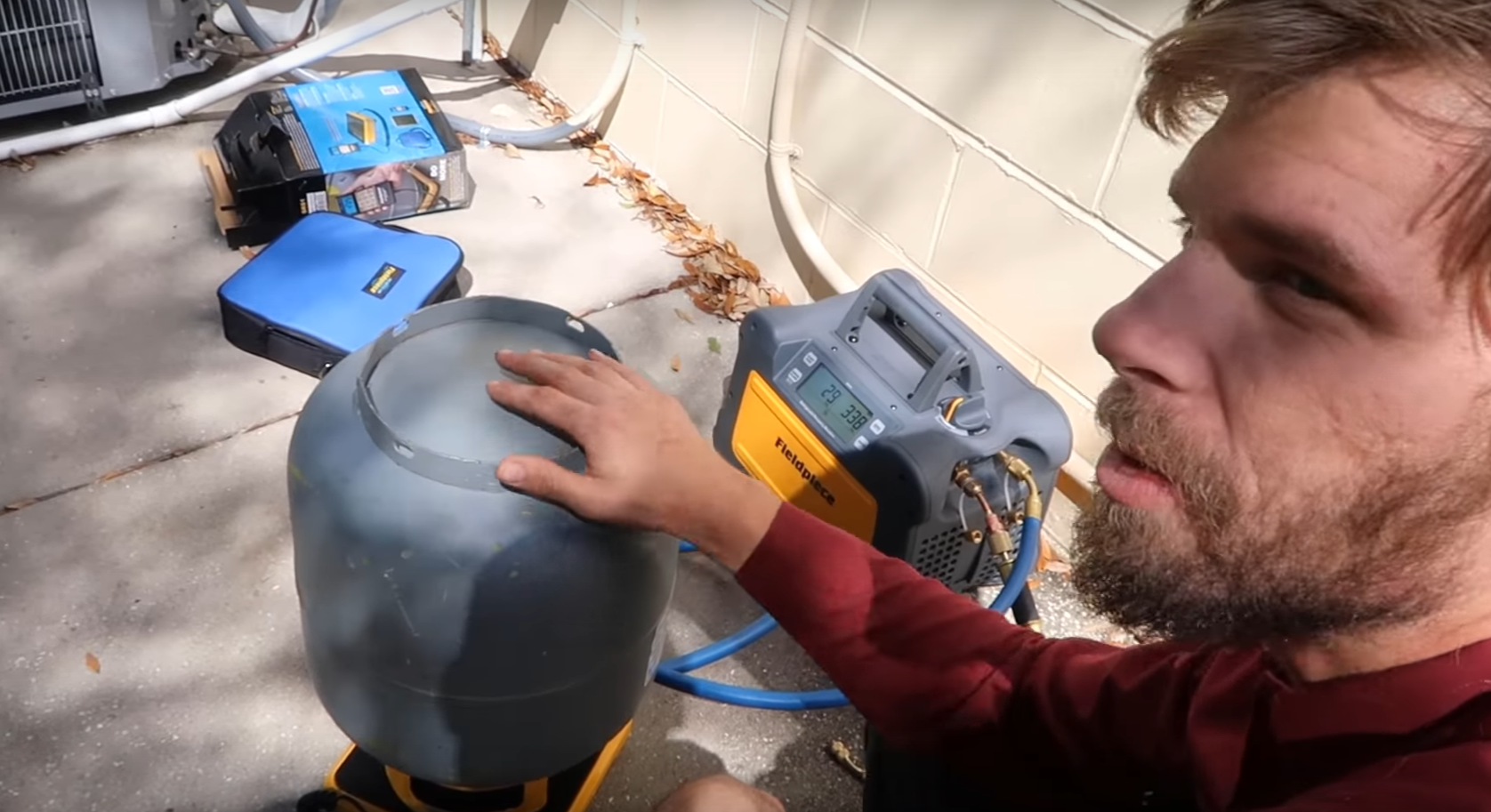

Recovery is the removal of refrigerant from a system to either store and send in for recycling or to reintroduce back into the same system. This video with TruTech Tools covers some of the best practices we use.

Here are some top tips –

  • Make sure your tank is empty and evacuated to 300 microns if you plan to return the refrigerant back into the system.
  • Never mix refrigerants.
  • Purge hoses before recovery.
  • Use a flare line drier on the inlet of the machine to increase the life of the machine and to filter and dry the refrigerant. These must be replaced regularly.
  • When recovering into a tank using the standard method invert the tank and pump into the vapor port on the tank.
  • Remove Schrader cores before recovery for faster recovery and a cooler tank.
  • Use larger gauge hoses with no core depressors for faster recovery.
  • Check Recovery machine inlet screens regularly and clean or replace as needed.
  • Some machines require oil to be run through the machine from time to time. Read manufacturer specifications.
  • If your tank becomes hot you can either place it in a bucket of water or run water over the tank.
  • Do not leave refrigerant in your machine during storage. If your machine has a purge mode make sure to purge the refrigerant out of the condenser (see manufacturers specs on your machine).
  • Most HVAC systems holding under 200 lbs of refrigerant are not required to be pulled into a vacuum during recovery. See this chart from the EPA.
  • Weigh the refrigerant out and do not fill the tank to more than 80% of the REFRIGERANT capacity, not just the water capacity.

Comments

Todd
Todd @bryanorr

Can you turn the recovery tank upside down when useing a G5 twin recovery machine?

4/8/17 at 07:53 AM

Can you turn the recovery tank upside down when useing a G5 twin recovery machine?

Files:
Bryan Orr
Bryan Orr @bryanorr

Yes

4/8/17 at 01:41 PM

Yes

Files:
David
David @bryanorr

Great question…

4/8/17 at 12:38 PM

Great question…

Files:
Bryan Orr
Bryan Orr @bryanorr
4/8/17 at 02:28 PM
Files:
Butch azbell
Butch azbell @bryanorr

Why invert the tank?

4/8/17 at 01:30 PM

Why invert the tank?

Files:
Bryan Orr
Bryan Orr @bryanorr

Shorter tube and better heat dissipation https://youtu.be/KjamZeSIgF8?t=2m17s

4/8/17 at 02:27 PM

Shorter tube and better heat dissipation https://youtu.be/KjamZeSIgF8?t=2m17s

Files:
Shawn
Shawn @bryanorr

It says the video is private

1/24/22 at 10:04 PM

It says the video is private

Files:
Robert S.
Robert S. @bryanorr

Outstanding! The 1/2″ hi capacity filter dryer won me over. The whole production of this is top notch. You have some great guys working for you.

4/12/17 at 07:13 AM

Outstanding! The 1/2″ hi capacity filter dryer won me over. The whole production of this is top notch. You have some great guys working for you.

Files:
Green Dallas
Green Dallas @bryanorr

HI Bryan Orr, I watched a video on your site for the marvelous video Refrigerant Recovery Practices.

7/14/21 at 04:31 PM

HI Bryan Orr, I watched a video on your site for the marvelous video Refrigerant Recovery Practices.

Files:
