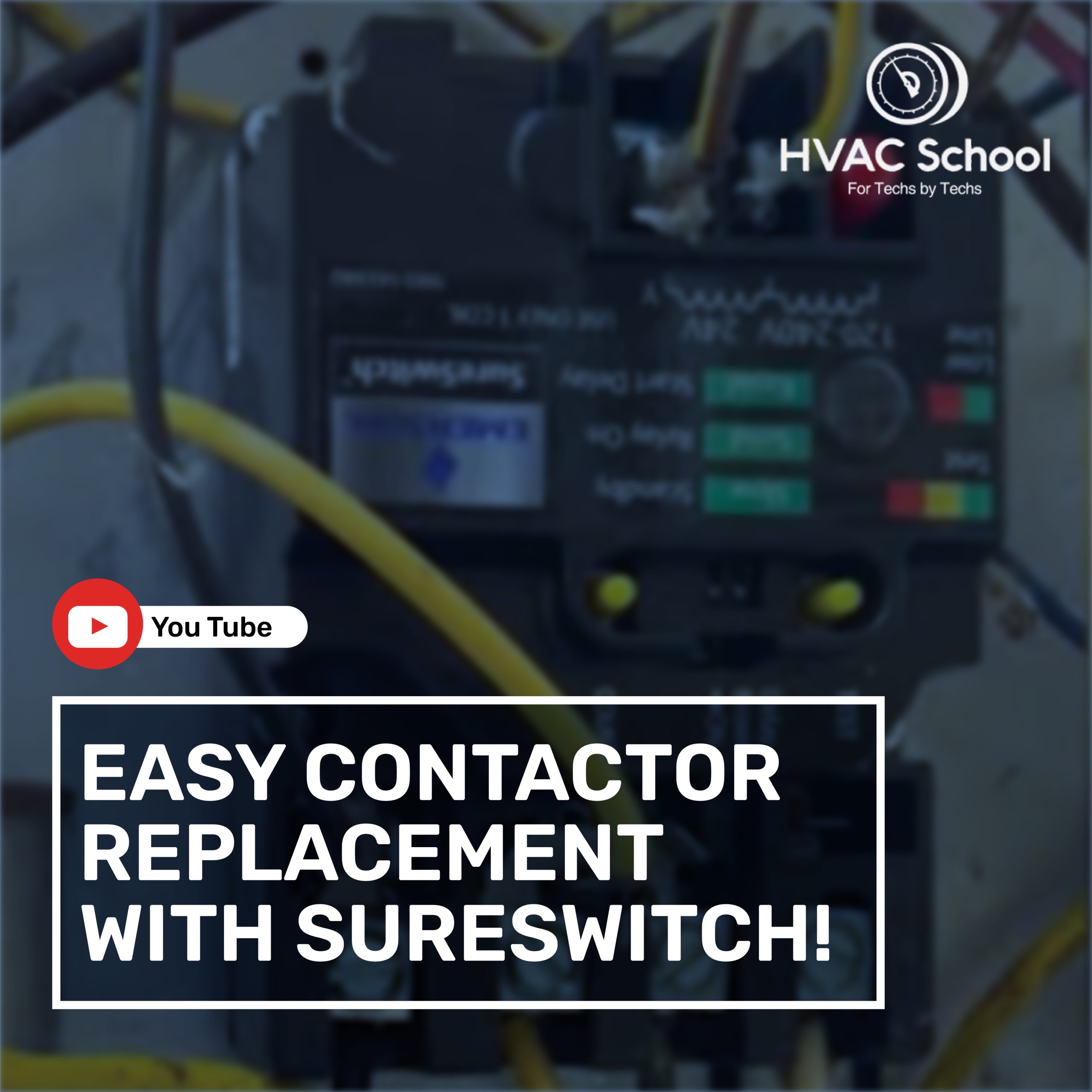

Easy Contactor Replacement with SureSwitch!

December 25, 2024

In this tutorial, HVAC School's expert JD Kelly walks you through the step-by-step process of replacing a single pole contactor using the innovative SureSwitch.

What You’ll Learn:

Safety first: Proper power disconnection and access panel removal
How to identify contactor failure signs
Wire-for-wire replacement techniques
Mounting considerations and orientation tips
Wiring specifics for multi-volt control coils
Testing procedures for your new SureSwitch

Key SureSwitch Features Highlighted:

Sealed unit design
Dedicated mounting plate
Excellent wiring diagram
Multi-volt control coil compatibility
Enhanced reliability

Pro Tip: Always follow the manufacturer’s torque specifications and carefully review the wiring diagram before installation.

#contactor #contactor coil #hvac #sureswitch #white-rodgers
