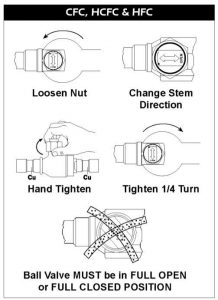

We had a class with our refrigeration techs, and the topic of leaking and bypassing service “angle” valves and ball valves came up. One of the techs pointed out that most valves recommend loosening the top nut on ball valves and the packing nut on angle valves before turning the stem for maximum longevity of […]

Solenoid Facts

Do you know how a solenoid valve works? Really? On the surface, I think we all understand how a solenoid valve works. The coil energizes, creating an electromagnet. That temporary magnetism lifts an iron plunger within the valve allowing refrigerant to flow. But is it really that simple? It turns out that the answer isn't […]

rahul

Check out our most recent video

How to Evacuate an AC system, Full Vacuum Procedure

Our latest Podcast

HVAC School – For Techs, By Techs

Real training for HVAC ( Heating, Ventilation, Air Conditioning and Refrigeration) Technicians. Including recorded tech training, interviews, diagnostics and general conversations about the trade.

In this short podcast episode, Bryan talks about the CPS Molecular Transformator and what it does.

The Molecular Transformator is a version of a tube-in-shell heat exchanger, which is a method of exchanging heat from one fluid medium to another fluid medium. Tubes containing a fluid pass through a shell containing water or glycol, and there is a heat exchange between that secondary fluid and the fluid being circulated in the tubes. In a Molecular Transformator, the fluid being circulated is recovered refrigerant, and the secondary fluid is water (in a bucket), which absorbs heat from the refrigerant and cools it down to make sure that the refrigerant enters the recovery tank as a liquid.

Refrigerant recovery machines have condensers inside of them, but they are quite small and don’t hold a lot of refrigerant by design; many recovery machines use microchannel coils. A lot of the time, the refrigerant leaving a recovery machine is a liquid-vapor mix and too high-temperature; a lot of people run a hose over the tank or put it in a bucket of ice. The “Molecular Transformator” tries to settle the vapor molecules down into a liquid; it transforms the vapor molecules using the same mechanism of a shell-in-tube heat exchanger.

The main issue is that there will be leftover refrigerant in the Molecular Transformator after recovery. However, you can mitigate this problem with ball valves and proper purging. Do so responsibly to avoid venting refrigerant.
