Planning and Installing Condensate Drain Lines

The condensate drain is the source of many a service call in Florida. A lot of the time, the problem is just a clogged drain; bacterial zoogloea (drain snot) loves humidity, and the all-aluminum coils don’t do us any favors. Other times, there are some clear drain design or installation flaws that present hazards to […]

Trap and Vent – A Drain Debacle

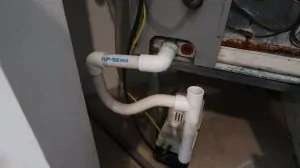

This picture is from a recent call I ran that clearly had an interesting past. It had a condensate pump to pump the water just a few feet up to a drain that went to a common drain. The “cleanout” after the trap is supposed to be a vent, not a cleanout, which means it […]
