What’s the Difference Between 208v and 240v?

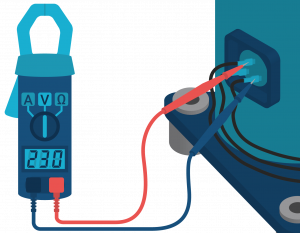

The easy answer is 32v. Class dismissed. I’m only joking, of course. Finding the difference between 208 and 240v power supplies may sound quite simple, but there are some pretty sharp fundamental differences. Apart from the obvious differences in overall voltage, 208 and 240v power supplies use the electrical company’s power differently. The motors also […]

Multi Tap Primary Transformers

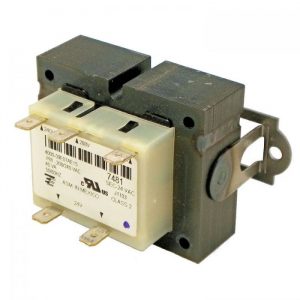

Have you ever seen a low-voltage transformer like the one shown above? It has multiple input (primary) taps for a good reason. It is common to find three-phase and single-phase equipment rated to operate on both 240v and 208v power. That is because three-phase power can either be 208v leg to leg when the building […]

Andrew Manuel

Check out our most recent video

How to Evacuate an AC system, Full Vacuum Procedure

Our latest Podcast

HVAC School – For Techs, By Techs

Real training for HVAC ( Heating, Ventilation, Air Conditioning and Refrigeration) Technicians. Including recorded tech training, interviews, diagnostics and general conversations about the trade.

Bryan Orr and Steve Rogers dive deep into measuring power consumption in HVAC blower motors, particularly focusing on the differences between PSC (Permanent Split Capacitor) and ECM (Electronically Commutated Motor) technologies. The discussion stems from a question raised at an educators’ conference about the accuracy of clamp-on meters in measuring blower motor watt draw, as specified in the ACCA Standard 310.

Steve shares insights from extensive testing conducted with different types of motors and power meters. The tests compared PSC motors with constant torque and constant airflow ECM motors across various static pressure conditions. One key finding was that two out of three field-available clamp-on meters tested were capable of accurately measuring true power at levels expected in residential blower motors. However, one meter showed significant inaccuracy at low power levels, highlighting the importance of carefully reviewing meter specifications before use.

The conversation delves into the concept of power factor and its crucial role in understanding the true power consumption of ECM motors. Steve explains that ECM motors often have a low power factor (around 0.6), which can lead to misconceptions about their efficiency if only the current draw is measured. The discussion emphasizes the need for proper measurement techniques, including simultaneous voltage and current readings with the blower door on, to accurately assess motor efficiency.

Key topics covered in the podcast:

Differences between PSC and ECM motor technologies
Importance of power factor in measuring true power consumption
Accuracy of field-available clamp-on meters for power measurement
Impact of static pressure on motor performance and efficiency
Misconceptions about ECM motor efficiency and longevity
Proper measurement techniques for assessing blower motor watt draw
Relationship between duct system design and motor efficiency
Implications of ACCA Standard 310 for HVAC installations
Challenges in comparing constant torque and constant airflow ECM motors
The role of control algorithms in ECM motor performance
Importance of understanding meter specifications for accurate measurements

Have a question that you want us to answer on the podcast? Submit your questions at https://www.speakpipe.com/hvacschool.

Purchase your tickets or learn more about the 6th Annual HVACR Training Symposium at https://hvacrschool.com/symposium. Subscribe to our podcast on your iPhone or Android. Subscribe to our YouTube channel. Check out our handy calculators here or on the HVAC School Mobile App for Apple and Android.
