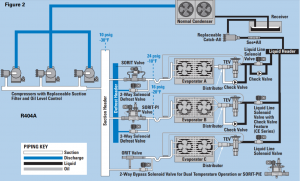

Photo Courtesy of Parker/Sporlan There are many brands and styles of evaporator pressure regulating valves (EPR), but none as common as the Parker/Sporlan SORIT and ORIT valves. The diagram above clearly shows some of the common applications. An EPR or “hold back” valve maintains a set suction line pressure and, therefore, coil temperature. That is […]
