Basic Refrigeration Circuit

1. What should be the state of the refrigerant in the suction line?






Question 1 of 12

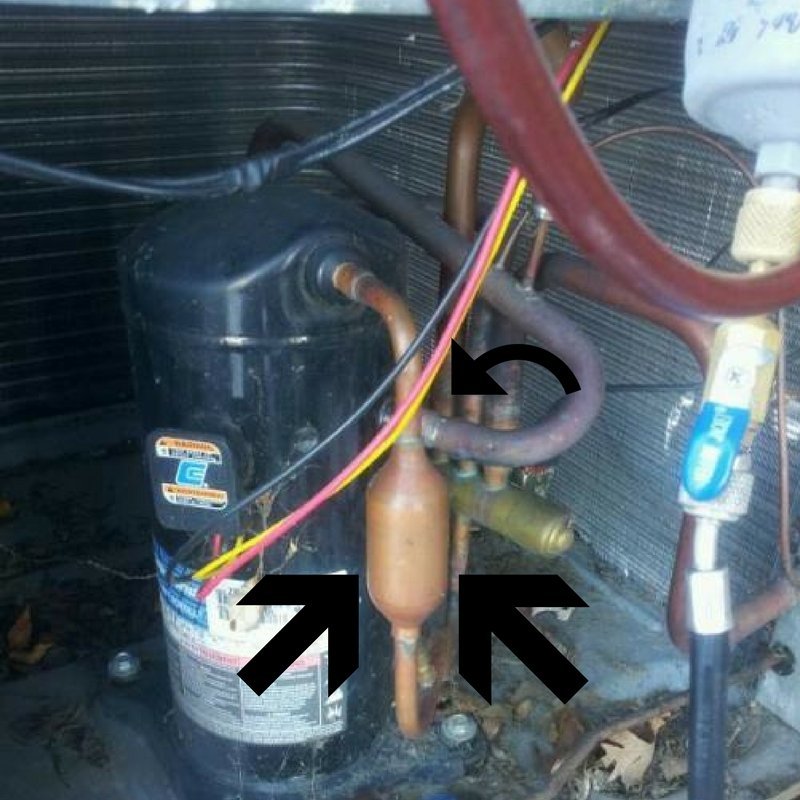

2. The part that is pointed at by the black arrows is a….
1







Question 2 of 12

3. The Discharge line travels between the…..






Question 3 of 12

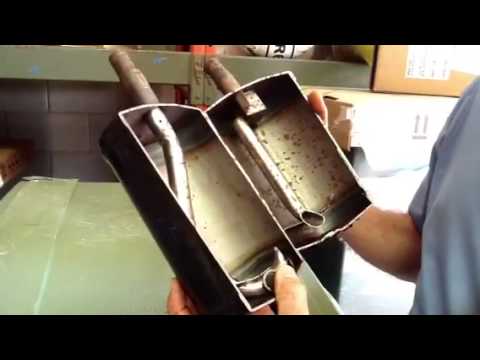

4. This is a Cutaway of a….
 2







Question 4 of 12

5. A ___________ can often be confused with a liquid line drier because they can look similar






Question 5 of 12

6. Which is the correct order of refrigerant states starting with the discharge line





Question 6 of 12

7.
What is the weakness of a fixed orifice metering device?






Question 7 of 12

8. Which line would generally be slightly warmer than outdoor ambient (during cooling mode)?






Question 8 of 12

9. Why is the compressor discharge line hot?





Question 9 of 12

10. When the temperature of a __________ gas goes up, its volume goes_____________.





Question 10 of 12

11. Bonus Question: You Find a TXV System Running high head pressure, low suction pressure, high superheat, high subcool and low evaporator air temperature split. What category of failure do you most likely have?








Question 11 of 12

12.
The “High Side” of the refrigerant circuit is made up of the





Question 12 of 12




10 comments

Leave a Reply

Your email address will not be published.

This site uses Akismet to reduce spam. Learn how your comment data is processed.

  • Love this site. GREAT info. I use it and reccommend it to my students.Love the lectures, videos would be cool.
    Cliff Krug
    HVAC Instructor TN College of Applied Technology @Dickson

  • In my classes we have a few rotary compressors and they have shiny black accumulators on them. The students call this a drier quite often because our alco display driers look very similar.
    38 yrs experience, 20 years of a/c company owner, State of Texas subject matter expert and owner of a/c Training school. Currently under contract to develop a textbook

  • I agree with the videos as well. Also love the podcast. Is a daily listen on the rides in the work van!

  • I haven’t done any quick quizzes like this since I got my Journeyman ticket 11 years ago.
    Made me think back to school. Ha. Good stuff. Thanks. Keep them coming.

  • Recently started listening to your podcasts. Good stuff. Maybe you could do an episode on those fun carrier/Bryant heat exchangers they were having issues with.

  • Have to disagree with sight glass question. If you charge past the full sight glass on a cold day the system will be overcharged at higher ambient temperatures with liquid banked up in the condenser and high discharge temperatures. Also once you have charged past a full sight glass you can easily overcharge a system. The low sight glass may be due to flash gas caused by insufficient subcooling in the condenser and liquid line and not low charge,exacerbating the problem, therefore all the answers are incorrect. Also what is a cold control? It must be an American expression. Please be more specific as any control on the low side of the refrigeration system could be called a cold control. I take it you are referring to a refrigeration evaporator or coil thermostat as opposed to a room thermostat.
