When we say that there is “flash gas” at a particular point in the system it can either be a bad thing or a good thing depending on where it is occurring.

Flash gas is just another term for boiling.

It is perfectly normal (and required) that refrigerant “flashes” or begins boiling directly after the metering device and as it moves through the evaporator coil. In order for us to transfer heat from the air into the refrigerant in large quantities we leverage the “latent heat transfer of vaporization”. In other words we transfer heat into the boiling refrigerant, or “flash gas”.

In a boiling pot of water we create flash gas by increasing the temperature of the water until it hits the boiling temperature at atmospheric pressure.

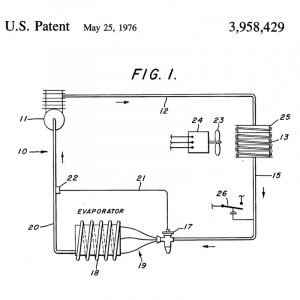

Inside of a refrigeration circuit we get flash gas when the pressure on the liquid refrigerant drops below the temperature / pressure saturation point or if the temperature of the refrigerant increases above the same point.

This “flashing” can occur in the liquid line when the liquid line is long or too small and also in cases with line kinks and clogged filter/driers. All of these instances result in a pressure drop and a drop in the saturation temperature.

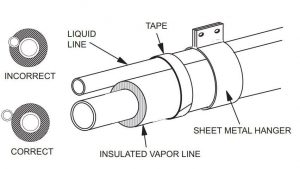

It can also occur in the liquid line if it is run uninsulated through a space that is hotter than the liquid saturation temperature like on a hot roof or in an unconditioned attic. This is more rare and will generally only cause flashing in conjunction with another issue.

This flashing can be prevented by keeping line lengths and tight bends to a minimum, insulating the liquid line where it runs through very hot spaces and keeping the refrigerant dry and clean with one properly sized filter/drier.

It can also be prevented in most cases by maintaining the proper levels of subcooling. A typical system that has 10°+ of subcooling will not experience flashing in the liquid line under normal conditions.

When you walk up to a liquid line near the evaporator and you hear that hissing/surging noise or when you look in a sight glass and see bubbles you are seeing refrigerant that is at saturation, meaning it is a mix of vapor and liquid. This doesn’t necessarily mean it is “flash gas”, it could very well be that the refrigerant was never fully condensed to liquid in the condenser in the first place. This can be due to low refrigerant charge and in these cases the subcool will be at 0° Even when taken at the condenser.

True liquid line “flash gas” issues are cases where you have measurable subcooling at the condenser coil outlet but still see, hear or measure boiling/flashing refrigerant in the liquid line before the metering device.

— Bryan

Suction pressure, head pressure, subcooling, superheat, Delta T

Taking all five of these calculations into account on every service call is critical. Even if further diagnostic tests must be done to pinpoint the problem, these five factors are the groundwork before more effective diagnosis can be done. I would also add static pressure as an important reading that should be checked regularly (Keep TESP between .3″wc and .7″ wc on most systems) but I would still place it slightly below these five as far as fundamental HVAC technician measurements.

Some of these are “rules of thumb” and obviously are for reference only. Refer to manufacturer recommendations when setting a charge.

Suction Pressure / Low Side
Suction pressure tells us several things. The first thing it tells us is what the boiling temperature of the refrigerant in the evaporator is. If the suction pressure is below 32° saturation temperature, the evaporator coil will eventually freeze.

As a general rule, the higher the temperature of the air passing over the evaporator, the higher your suction pressure will be. A good rule of thumb for suction pressure is 35°  saturation below indoor ambient +/- 5° (Return temperature measured at the evaporator coil). This temperature differential is often called an evaporator split or design temperature difference (DTD). When calculating DTD a “Higher” DTD means lower suction pressure in comparison to the return temperature, a lower DTD means higher suction pressure.

This means that when the temperature of the air passing over the evaporator is 80°, the low side saturation temperature should be 45° when the system is set for 400 CFM per ton output. Remember the temperature scale next to the pressure scale on the gauge represents saturation or if you don’t have the correct sale on (or in your gauge if you have a Digital manifold) you would need to use a PT chart.

This 35° rule only works at 400 CFM per ton, when a system is designed for 350 CFM per ton the DTD will be closer to 38° – 40° +/- 5°

Make sure you know the actual CFM output of the system before you calculate DTD. It can vary significantly based on the setup of the particular blower. Also keep in mind that oversized evaporator coils that some manufacturers specify for efficiency can also result in slightly lower DTD (higher suction). If you don’t know all the details it is my experience that using 35° is the best bet.

Head Pressure / High Side
When used in conjunction with liquid line temperature, we can know what state the refrigerant in the liquid line and that the compressor is pumping / operating in the required compression ratio. We can also know something about the state of the metering device as to whether or not refrigerant is “backing up” against the metering device. A good rule of thumb for head pressure is a 15° – 20° saturation above outdoor ambient +/- 3° for most modern systems. These saturation / ambient calculations are only indicators; they are not set in stone. Keep in mind, when I say ambient; I am talking about the air entering the evaporator for suction pressure and the condenser for head pressure.

Jim Bergmann points out that different equipment efficiencies will have different target Condensing Temperature Over Ambient (CTOA) readings. Keep in mind that these date ranges don’t guarantee the SEER but rather give the date ranges that these efficiencies will be most likely. The larger the condenser coil in relationship to the volume of refrigerant being moved the  lower the CTOA will be.

6 – 10 SEER Equipment (Older than 1991) = 30° CTOA

10 -12 SEER Equipment (1992 – 2005) = 25° CTOA

13 – 15 SEER Equipment (2006 – Present) = 20° CTOA

16 SEER+ Equipment (2006 – Present) = 15° CTOA

Superheat is important for two reasons. It tells us whether or not we could be damaging the compressor and whether we are fully feeding the evaporator with boiling, flashing refrigerant. If the system has a 0° superheat, a mixture of liquid and vapor is entering the compressor. This is called liquid slugging and it can damage a compressor. A superheat that is higher than the manufacturer’s specification can both starve the evaporator, causing capacity loss, as well as cause the compressor to overheat. So how do we know what superheat we should have? First, we must find out what type of metering device the system is using. If it is using a piston or other fixed metering device, you must refer to the manufacturers superheat requirements or a superheat chart like the one below.

If it is a TXV type metering device, the TXV will generally attempt to maintain between a 5° to 15° superheat on the suction line exiting the evaporator coil (10° +/- 5°)

TXV target superheat setting may vary slightly based on equipment type.

Subcooling tells us whether or not the liquid line is full of liquid. A 0° subcool reading tells us that the refrigerant in the liquid line is part liquid and part vapor. An abnormally high subcool reading tells us that the refrigerant is moving through the condenser too slowly, causing it to give up a large amount of sensible heat past saturation temperature. A high subcool is often accompanied by high head pressure and, conversely, a low subcool by low head pressure. Subcool is always a very important calculation to take because it lets you know whether or not the metering device is receiving a full line of liquid. Typical ranges for subcooling are between 8 and 14 degrees on a TXV system, but always check the manufacturer’s information to confirm. in general on a TXV system using 10° +/- 3° at the condenser outlet is the best “rule of thumb” in the absence of manufacturer’s data.

On a fixed orifice / piston system the subcooling will vary even more based on load conditions  and you will see a range of 5° to 23° making subcooling less valuable on a fixed orifice system. In my experience during normal operating conditions  the subcooling on a fixed orifice system will still usually be in the 10° +/- 3° range.

Evaporator Air Temperature Split (Delta T)
The evaporator air temperature split (Delta T) is a nice calculation because it gives you a good look at system performance and airflow. A typical air temperature split will be between 16 and 22 degrees difference from return to supply. Keep in mind, when you are doing a new system start up, high humidity will cause your air temperature split to be on the low side. Refer to the air temperature split and comfort considerations sheets for further information.

For systems that are set to 400 CFM per ton, you can use a target Delta T sheet like the one shown below


If the leaving temperature/delta T split is high it is an indication of low airflow. If it is low it is an indication of poor system performance / capacity.

Again, this only applies to 400 CFM ton. 350 CFM per ton or less are more common today than ever and in those cases the above chart won’t apply.

Diagnosing With The Five Pillars

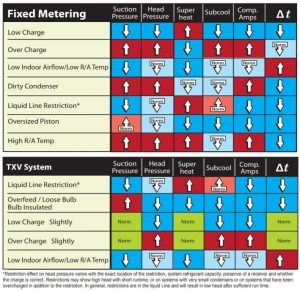

The way this list must be utilized is by taking all five calculations and matching up the potential problems until you find the most likely ones. A very critical thing to remember is that a TXV system will maintain a constant superheat, and a fairly constant suction pressure. The exceptions to this rule are when the TXV fails, is not receiving a full line of liquid or does not have the required liquid pressure/pressure drop to operate. This situation would show 0° subcooling and in this case, will no longer be able to maintain the correct superheat. Before using this list, you must also know what type of metering device is being utilized, then adjust thinking accordingly. Also remember, in heat mode, the condenser is inside and the evaporator is outside.

Low Suction Pressure
• Low on charge
• Low air flow /load – dirty filter, dirty evaporator, kinked return, return too small, not enough supply ducts, blower wheel dirty, blower not running correct speed, insulation pulling up against the blower, etc.
• Metering device restricting flow too much – piston too small, piston or TXV restricted, TXV failing closed
• Liquid line restriction – clogged filter/drier, clogged screen, kinked copper
• Low ambient (Low evaporator load)
• Extremely Kinked suction line (after the kink)
• Internal evaporator restriction
High Suction Pressure
• Overcharge
• High return temperature (Evaporator Load)
• Metering device allowing too much refrigerant flow – piston too large, TXV failing open, piston seating improperly
• Too much airflow over the evaporator (Blower tapped or set too high)
• Compressor not pumping properly – bad suction valve, bad discharge valve, bad or broken crank
• Reversing valve bypassing
• Discharge line restriction
Low Head Pressure
• Low on charge
• Low ambient temperature / low load
• Metering device allowing too much refrigerant flow – piston too large, TXV failing open, piston seating improperly
• Wet condenser coil
• Compressor not pumping properly – bad suction valve, bad discharge valve, bad or broken crank
• Reversing valve bypassing (heat pump units)
• Kinked suction line
• Restricted discharge line
• Severe Liquid Line Restriction
High Head Pressure
• Overcharge
• Low condenser airflow – condensing fan not operating, dirty condenser, fins bent on condenser, bushes too close to condenser, wrong blade, wrong motor, blade set wrong
• High outdoor ambient temperature
• Mixed / incorrect refrigerant / retrofit without proper markings
• Non-condensables in the system
• Liquid line restriction + overcharge (someone added charge when they saw low suction) – piston too small, piston or TXV restricted, TXV failing closed, restricted line drier
Low Superheat
• Overcharge
• Low air flow / load – dirty filter, dirty evaporator, kinked return, return too small, not enough supply ducts, blower wheel dirty, blower not running correct speed, insulation pulling up against the blower etc.
• Metering device allowing too much refrigerant flow – piston too large, TXV failing open, piston seating improperly
• Low return air temperature
• Abnormally low humidity
• Internal evaporator restriction
• Very Poor Compression (Compressor, reversing Valve Issues) but will also be combined with VERY HIGH suction
High Superheat
• Low on charge
• Metering device restricting flow / underfeeding / overmetering – piston too small, piston or TXV restricted, TXV failing closed
• High return air temperature
• Liquid line restriction – clogged filter/drier, clogged screen, kinked copper

Low Subcooling
• Low on charge
• Metering device allowing too much refrigerant flow – piston too large, TXV failing open, piston seating improperly
• Compressor not pumping properly – leaking suction valve, leaking discharge valve, bad or broken crank
• Reversing valve bypassing
• Discharge Line Restriction
• Compressor not pumping
High Subcooling
• Overcharge
• Metering device restricting too much flow – piston too small, piston or TXV restricted, TXV failing closed
• Liquid line restriction – clogged filter/drier, clogged screen, kinked copper
• Wet condenser coil
• Dirty Condenser Coil on New High Efficiency Condensers (Increased Condensing Temp Can Actually Result in Higher Subcooling)
• Having an H.R.U. in the discharge line (old school I know)
• Internal evaporator restriction
High Evaporator Air Temperature Split
• Low air flow – dirty filter, dirty evaporator, kinked return, return too small, not enough supply ducts, blower wheel dirty, blower not running correct speed, insulation pulling up against the blower etc.
• Abnormally low humidity (WB Temp)
• Blower not running the correct speed or running backward
Low Evaporator Air Temperature Split
• Undercharge
• Severe Overcharge with fixed orifice metering device – because saturation temperature is increased with overcharge
• Metering device not functioning properly – restricting too much flow or allowing too much flow
• Too much airflow through the evaporator – blower not running correct speed
• Heat strips running with air
• Abnormally high humidity
• Liquid line restriction
• Compressor not pumping properly – bad suction valve, bad discharge valve, bad or broken crank
• Reversing valve bypassing
• Discharge line restriction


This is an incomplete list designed to help you. Always keep your eyes and ears open for other possibilities. Diagnosis is an art as well as a science.

— Bryan

This is the article you read BEFORE you call and ask a senior tech what your subcool should be, or the one you send to a junior tech when the call and ask you.

So what is subcooling? (or subcool as many call it)

Subcooling is a measurement of temperature DECREASE of a liquid below its saturation (mixed liquid / vapor) temperature at a given pressure. For example, water boils at 212° Fahrenheit at sea level (atmospheric pressure of 14.7 PSIA). If water is at 212° and at atmospheric pressure you can be sure it is at saturation, which means it is either in the process of boiling or condensing. If you measure that same water and it is at 202° you can be sure that it is fully liquid and that it is no longer in the process of either boiling (changing from liquid to vapor) or condensing (Changing from vapor to liquid). Because the water is at 202°  instead of 212° we know it is liquid and we can also say it is subcooled by 10°. This 10° of subcool PROVES that not only is it fully liquid but that it has given up more sensible heat energy enough to drop 10° below the boiling temperature at that pressure.

With refrigerant, we measure the subcooling between the condenser and the metering device and it gives us a lot of information. It not only tells us whether or not the line is full of liquid it gives us indications of refrigerant charge as well as condenser efficiency when viewed in conjunction with the condensing temperature (high side saturation temperature). Now be careful, like with all measurements, it is only as accurate as your tools, it must be taken using liquid line pressure and temperature (Line between the condenser and metering device) NOT discharge line pressure and temperature (line between the compressor and the condenser) AND you must have a good connection to the port. I can’t tell you how many times green techs have called me with “crazy” readings only to find out their hose was not depressing the Schrader core fully.

So what should it be?

Generally speaking 10° – 12° of subcooling at the outlet of the condenser coil is most common but you must look for the proper design subcooling for the particular system you are working on. Some systems will require subcooling readings of up to 16° for maximum efficiency and capacity.

Many techs will say that subcooling  is how you “set a charge” on a TXV / TEV / EEV metering device system

Subcooling is one of many factors you consider when setting a charge but you first need to make sure that your equipment is properly matched with the correct metering device. The air flow is set in properly, the blower, air filter, condensing coil and evaporator coils are clean and WHENEVER adding or removing charge use a scale so you can monitor your progress.

While it is true that subcooling is the primary charging measurement on a TXV /TEV / EEV system, subcooling is important to check on every system, every time you connect (whenever possible).

Negative Subcooling isn’t possible if the liquid line temperature and pressure are taken at the same point. What is possible is to have a miscalibration of your tools that makes a zero subcooling look like a negative subcooling.

Zero Subcooling means that the refrigerant in the liquid line is a mix of liquid and vapor, this is not an acceptable condition except in cases where the system is designed to inject discharge gas into the liquid line on purpose to increase liquid pressure (headmaster).

Low Subcooling is an indication that not enough refrigerant is contained or “packed” in the condenser. This can be due to under charge, under compression, or a metering device oversized or failing open

High Subcooling is an indication that more than the designed amount of refrigerant is “Backing up” or “packed” into the condenser.  This can be caused by overcharge, restriction (such as a contaminated line drier or kinked liquid line) or an undersized or failing closed metering device.

Also keep in mind, the subcooling can often read in range on a system that still has issues. Many times this is becasue the previous tech simply “set the charge” by subcooling without fully testing all aspects of the equipment.

— Bryan

Because some have expressed confusion, this article pertains to refrigeration systems that have a Receiver.


I frequently see techs online struggling with charging or troubleshooting refrigeration equipment and using subcooling as a diagnostic or charging method. Please don’t do this unless you understand it fully . Many times, trying to charge a refrigeration system to a specific subcooling value is going to result in a serious overcharge.




Glad you asked.. First, let’s take a look at a simple system and focus on the condenser, liquid line and metering device. As we condense refrigerant and fill the liquid line and condenser, the metering device begins restricts flow somewhat liquid to back up into the condenser. This ‘stacking’ effect as it’s commonly called, allows more time for the liquid to be in the condenser and to reject heat. That heat rejection is what results in additional subcooling. Adding more gas to this system will simply result in more liquid being stored in the condenser, more heat rejection from that liquid and, consequently an increasing subcooling value. That’s the system that you understand and that subcooling can be effectively used as a diagnostic and charging metric.


Now, let’s put a receiver in the system between the condenser and the metering device. Ok, we’ve got liquid in the condenser and it enters the receiver before the metering device. As the liquid line fills and the metering device starts to restrict as before, where does the liquid wind up? The receiver. It doesn’t wind up in the condenser where heat can be rejected, but rather in a tank to be stored. Now, if you’re measuring subcooling, before OR AFTER the receiver, you’re not going to see a significant change in that value before or after we reach a proper charge.


If you continue to add gas to the system it’s going to continue to fill the receiver until that liquid backs up to the inlet port of the receiver. Now, you’re seriously overcharged because a receiver shouldn’t be more than 80% full, but the system can now back liquid up into the condenser and allow for the subcooling to increase as it did in the simple system we looked at
first. This is why, when you have a receiver, you need to use either a sightglass or some form of receiver level monitoring to determine if you’re charge is correct and not just use subcooling.


— Jeremy Smith
