In this video we cover the basics of using the Testo 510i with a pitot tube to do a duct traverse and easily calculate Velocity in FPM and volume in CFM on a small 8″ duct. Using this method is handy because you can use the reliable, accurate and inexpensive 510i to perform the measurement without any other equipment other than tubes and a pitot tube.

As stated in the video, a pitot tube is best (most accurately) used in the following conditions –

  • Medium to High Air Velocities
  • With 4 -8 feet of hose
  • In low turbulence air at least 8.5 diameters downstream of any turns, fittings or diffusers (I was less than this in the video resulting in lower accuracy)
  • In a duct at least 30 times larger than the pitot tube diameter (It was less than this in the video resulting in lower accuracy)



For more information see the following links –

Dwyer Guidelines

TruTech Tools Traverse Quick Chart

TruTech Measuring with a pitot tube

Testo 510i specs

Video on the performance of a rectangular time average traverse

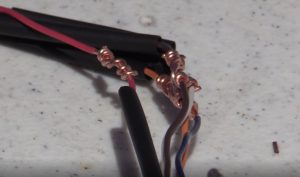

wire_rubout

There are a few important things that I suggest checking on every service call to reduce callbacks and increase customer satisfaction. One of them that often gets missed is preventing wire rub outs.

One of my area managers and experienced tech Jesse Claerbout shot a video showing the simple step he takes to prevent major damage.

We also just release a new podcast episode today that you can hear in any podcast app or by listening HERE

Cheers!

–Bryan
